TWINSHOCKS / EVOLUTION
SERIES |
|
| |
1975 - 1984 |
|
| |
The range or Falcon shock Absorbers for Motocross bikes
or this era have been built to include and update many of the features
that became necessary when long travel suspension was introduced. |
|
| |
The dampers have been designed with a large bore (36mm).
The bodies hold more oil and run cooler over long periods than the 32mm.
bore shocks, and the range of spring rate on the dual spring set up
enables the rider to fine tune the springs, so as to obtain exactly the
right 'feel' to the suspension. |
|
| |
Two types of damper are available in this range. A
straight damper with the gas reservoir inside the top of the body, as
part of the mounting bracket. this style of shock not only holds twice
the oil volume as the straight shock, but as the reservoir is away from
the damper body, better heat dissipation is obtained, resulting in a
cooler running unit with more constant running characteristics. |
|
| |
These types of shocks are available in lengths from
376mm - 445mm centres. |
|
| |
Longer special shocks can be built to order. |
|
| |
Catalogues Available: |
|
 |
|
| |
 |
 |
|
| |
Twinshock / Evolution Motocross |

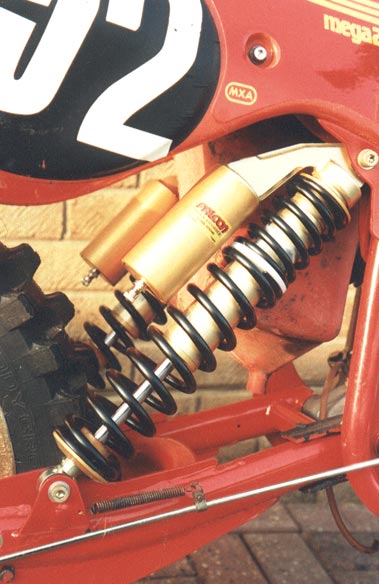

Piggybacks |
|
| |

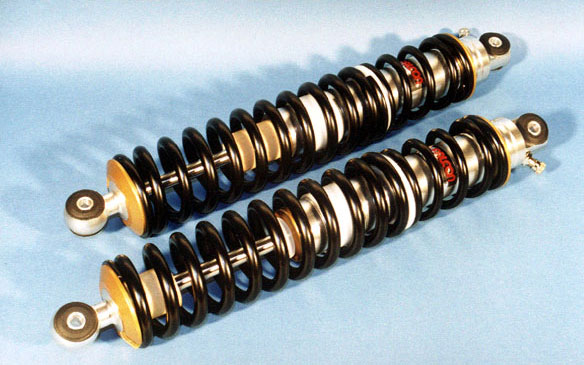

Steel bodied 36mm bore |
Aluminium body - 36mm shocks |
on Maico 490 |
|
