TRAIL -
TWINSHOCKS |
|
TRAIL BIKES |
|
... |
Make |
|
Model |
|
Part No. |
| |
HONDA |
|
XL 125 |
|
14.15/70/10x19B 12x24T |
| |
|
|
XL 175 1975 /79/84 |
|
13.15 /70/10 |
| |
|
|
XL 185s |
|
16.15/70/10x19B 12x24T |
| |
|
|
XL 250s |
|
16.15/70/10x19B 12x24T |
| |
|
|
XL 350s |
|
16.15/70/10x19B 12x24T |
| |
|
|
XL 500s |
|
16.15/70/10x19B 12x24T |
| |
|
|
TL 125 |
|
14.15/70/12 & 8 |
| |
|
|
TL 250
- 1974 |
|
14.4/70/12 & 8 |
| |
|
|
XR 500 |
|
16.9/70/12T 10x20B |
| |
KAWASAKI |
|
KT 250 |
|
14.15/40/14T 12B |
| |
SUZUKI |
|
DR 400 / DR 500s |
|
14.4/70/10 |
| |
|
|
SP 370 / 400 - 1981/82 |
|
15.4/70/10 |
| |
|
|
TS250 - 1972 |
|
15.4/70/12 |
| |
YAMAHA |
|
TT / XT 500 1976 |
|
13.75/70/8 |
| |
|
|
TT / XT 500 1977/81 |
|
15.25/125/10 |
| |
|
|
TT / XT 500 1977/81 |
|
14.25/125/10 |
|
|
| All units are supplied complete with springs and
mounting bushes. |
| All suggested spring rates correspond to a rider
weight of approx 80 Kg
(12.5st) it will be necessary to change the spring rate for heavier or lighter riders. |
|
 |
|
SPRING RATES AVAILABLE |
|
265mm Free length 40mm Inside Diameter |
|
RATE |
|
|
| 30 lb. / in |
80 lb. / in |
160 lb. / in |
| 40 lb. / in |
90 lb. / in |
180 lb. / in |
| 50 lb. / in |
100 lb. / in |
200 lb. / in |
| 60 lb. / in |
120 lb. / in |
|
| 70 lb. / in |
140 lb. / in |
|
|
|
|
 |
|

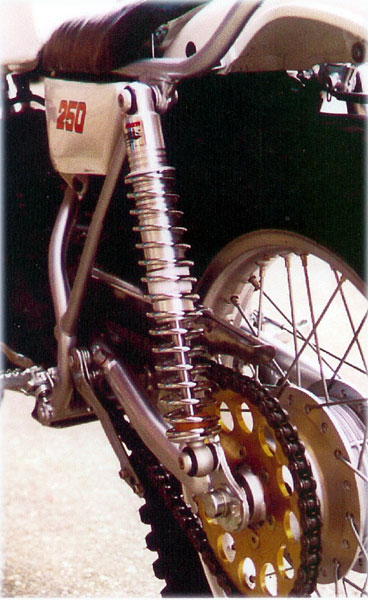

Aluminium bodied shocks on TY250
Yamaha |

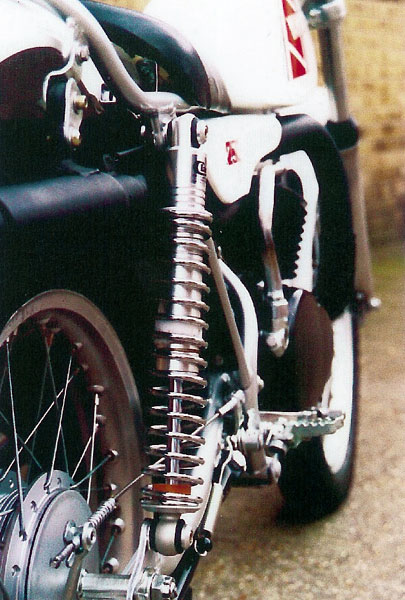

Aluminium bodied shocks on TY250
Yamaha |
