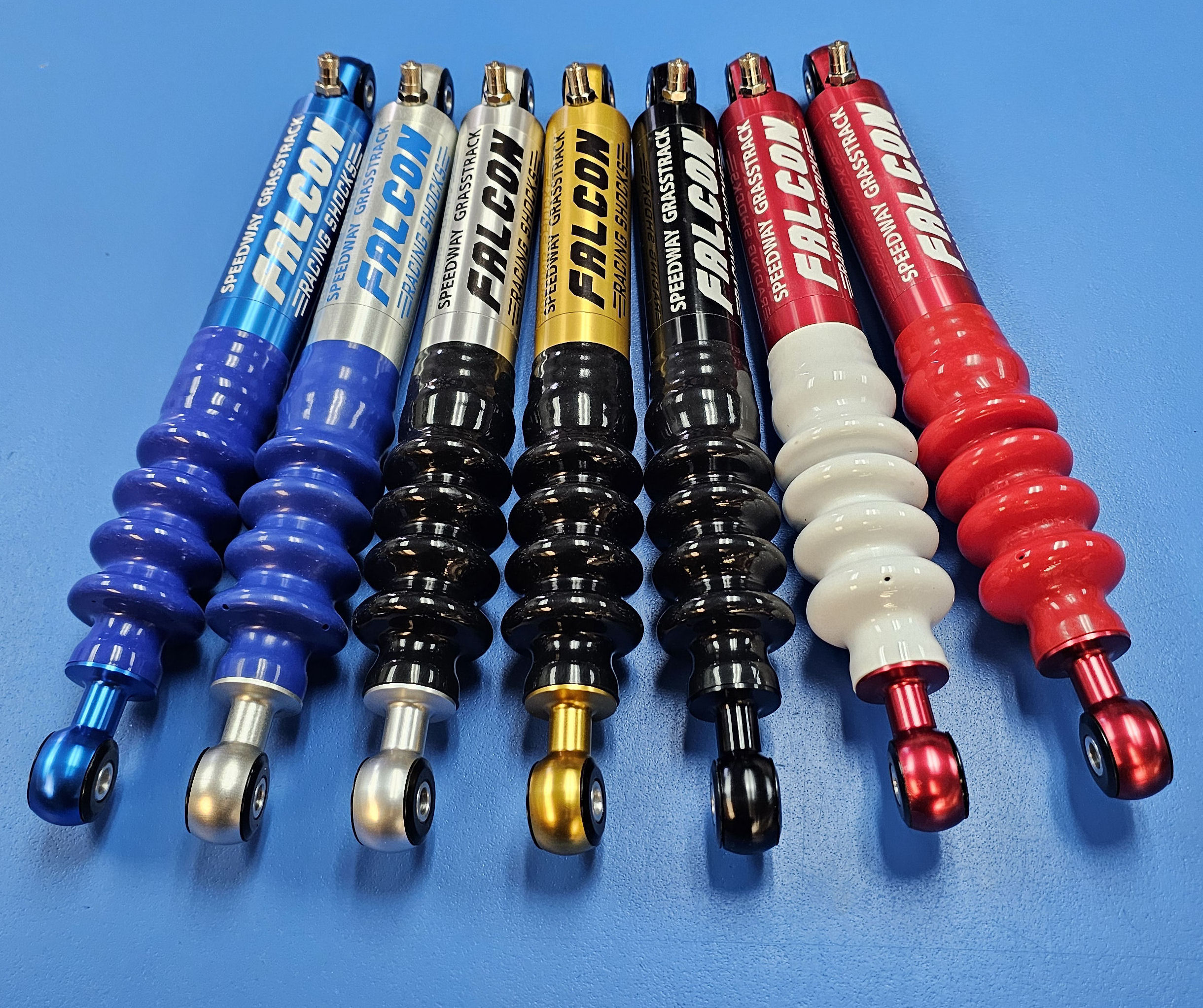

Front fork Dampers for speedway |
|
| |
long track and grass track leading link forks |
|
| |
 |
|
| |
|
|
| 1) |

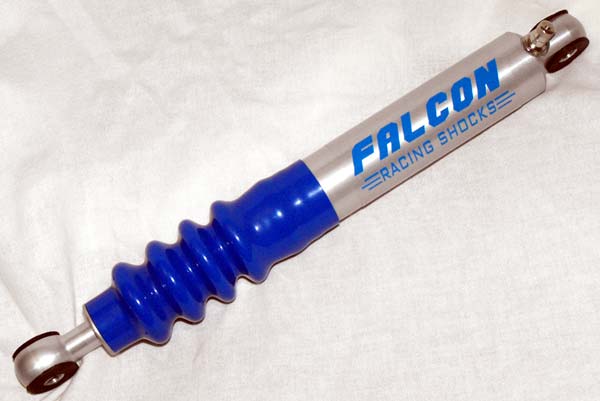

The falcon damper has been designed to provide the
optimum in performance and handling for leading link speedway, long
track and grass track forks. |
|
| |
|
|
| 2) |
The Falcon dampers were used in the 2007 and
2008 speedway season by Nicki Pederson to help him win two World
Championships, and are used by many other speedway riders worldwide.
|
|
| |
|
|
| 3) |
Aluminium is used extensively in the make up of
the damper to keep weight to a minimum, and modern metals are used internally
to reduce friction and wear. The damper piston
features a three stage system on both compression and rebound damping to ensure optimum
performance from your front suspension. |
|
| |
|
|
| 4) |
All Falcon dampers can be serviced, so that in the event of damage, the unit can
be completely rebuilt, so that the damping action can be brought back to
"as new" |
|
| |
|
|
| 5) |
The dampers
can be made to lengths of 296mm,
302mm, 309mm,
315mm and 322mm measured on the centres of the
fixing bolts. these lengths are suitable for JAWA, ANTIG and STUHA FORKS. |
|
| |
|
|
| 6) |
The dampers are supplied as
standard with a bush in each end, 20mm
wide and suitable for an 8mm bolt. These sizes can be varied by
arrangement at the time of ordering. |
|
| |
|
|
| 7) |
The dampers are available in
BLUE or BLACK
ONLY. |
|
| 8) |
The max
travel is 75mm
|
|
| |
|
|
| 9) |
When ordering your new front fork dampers please ensure that you have
the correct damper length for your forks and the correct with and
diameter for the shock mounting bushes. |
|
| |
|
|
| 10) |
The setting up instructions will help you
setup the damper correctly and get the best from your forks. |
|
| |
fitting
your new falcon damper to
Speedway
leading link forks |
|
| |
